Horizontal Air Flow Dry Air Coolers

1-14 fans, nominal capacity 40-800 kW

Our Horizontal Air Flow Dry Air Coolers are designed for cooling water / glycol fluids in process cooling and Industrial Fluid Applications for water chillers, induction furnaces, engine and compressor cooling, CHP and power generation industries. The modular design uses the Ziehl Abegg AC Owlet fan assembly for high efficiency with low noise with many features for reliable and cost effective water cooling.

Why choose HC Coils?

Bespoke Design

In house design team allows optimum selection of fan and coil configurations for your applications

Low Noise

We design our units to ensure they can meet your low noise requirements by utilising industry leading OWLet fans

Energy Efficient Options

Variable speed fans using EC motors or AC motors with inverter drive options to save energy

Industrial Reliability

We use quality materials and apply our unparalleled experience to select the most suitable material for each installation – this is why some of our dry air coolers have been running for over 25 years

Multiple Configurations

V-block, Half V, Horizontal and Vertical Flatbed designs available for our dry air coolers to suit varied installations, with restricted height or small footprint for vertical or horizontal airflow

Factory Fitted Controls

Our in-house manufactured fan control panels are factory fitted to offer a plug and play solution – this saves you valuable installation time

Specification:

Coil: ½” o.d. seamless drawn copper tube mechanically expanded into aluminium fins for efficient heat transfer.

Casing: Galvanised Sheet Steel finished with Polyester Powder Coating BS4800 00A05 Goose Wing Grey.

Fan Assemblies: Ziehl Abegg AC Owlet Fans with External Rotor Motors for 400/3/50Hz supply with 6 or 8 Pole Delta / Star Connection for efficiency and low noise, wired to a terminal box at the connection end of the unit.

Optional features:

Polyester Coated Aluminium Fins

Plain Copper Fins

Electro tinned Copper Fins

Fan Cycle Temperature Control Panel

Inverter Fan Speed Control

5/8” o.d. T304 stainless steel tubes

Gallery:

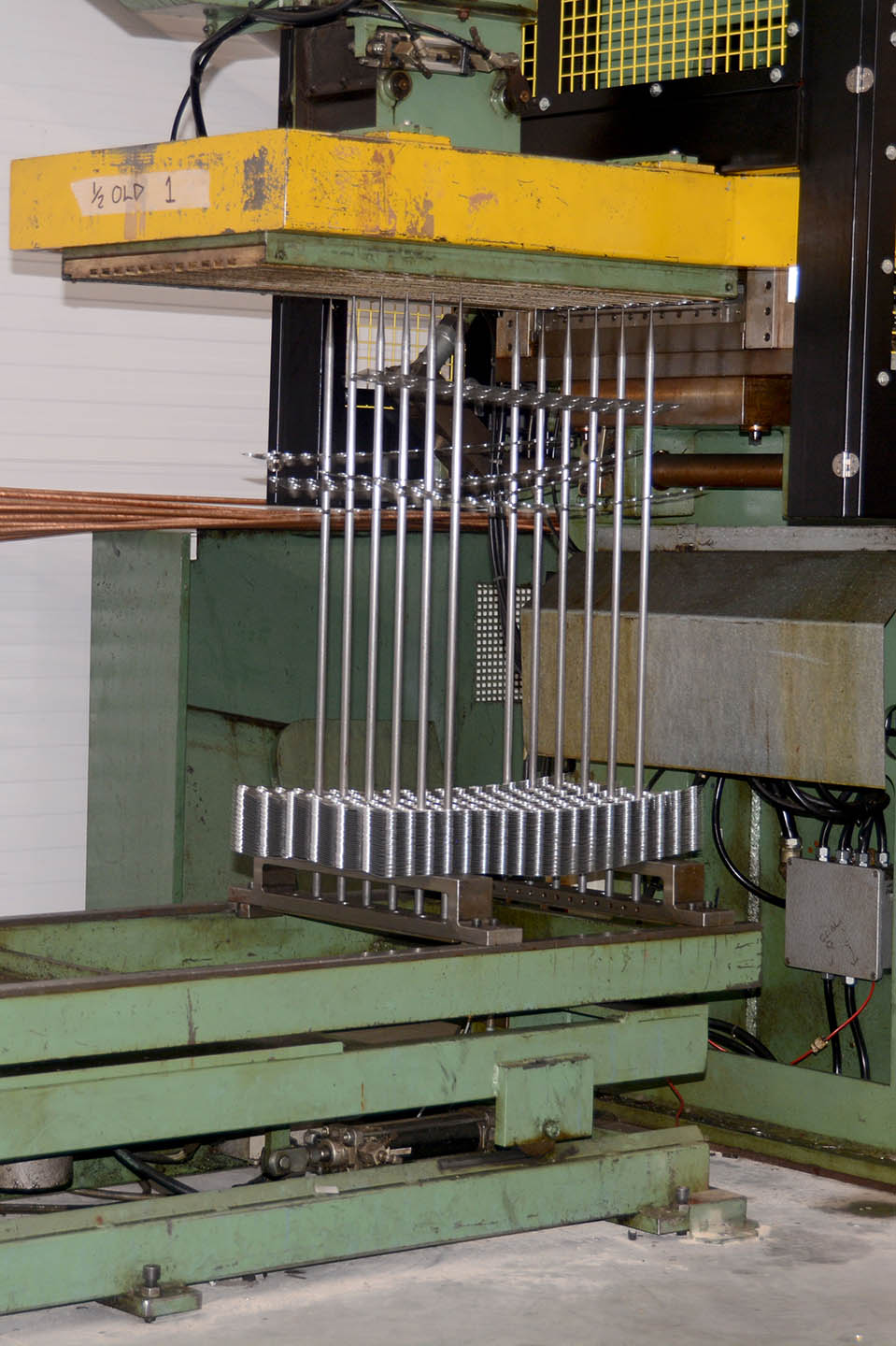

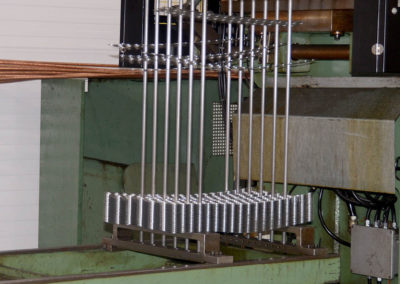

We design, build, and configure our products in Hampshire, UK, under stringent quality controls and using state-of-the-art equipment at our purpose-built advanced manufacturing facilities.
